Used Thermofisher Scientific Inline X-Ray Inspection System

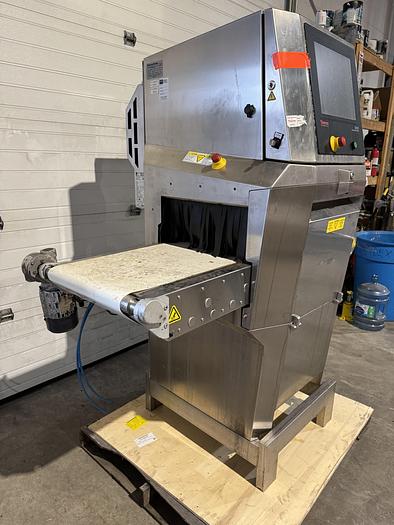

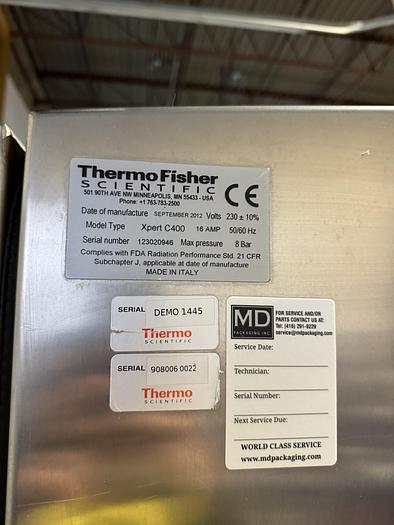

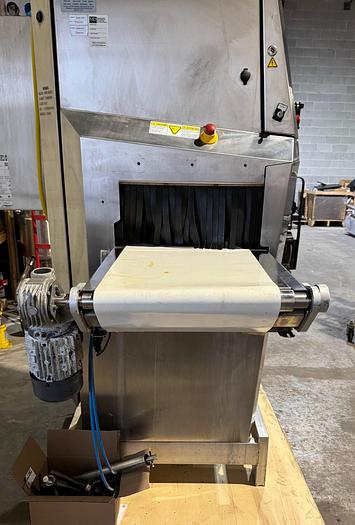

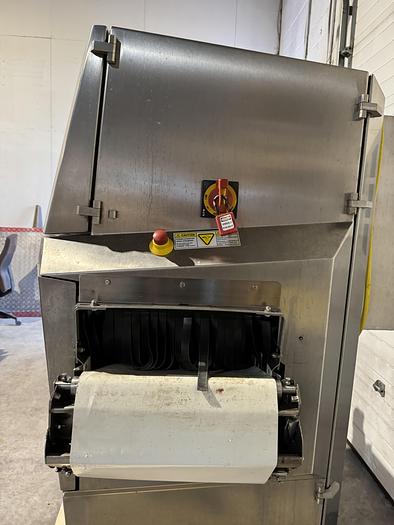

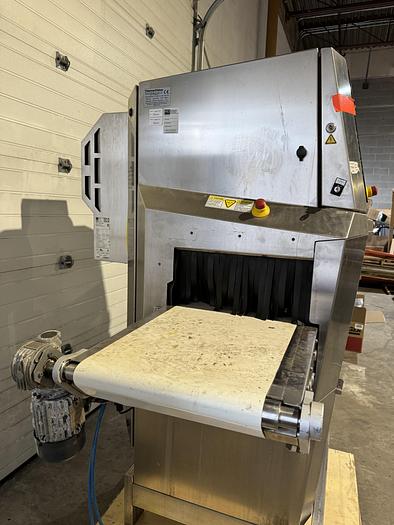

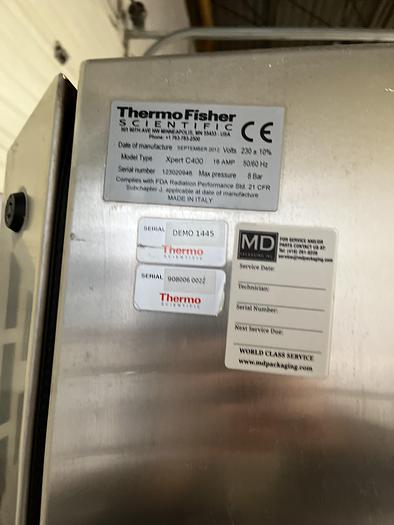

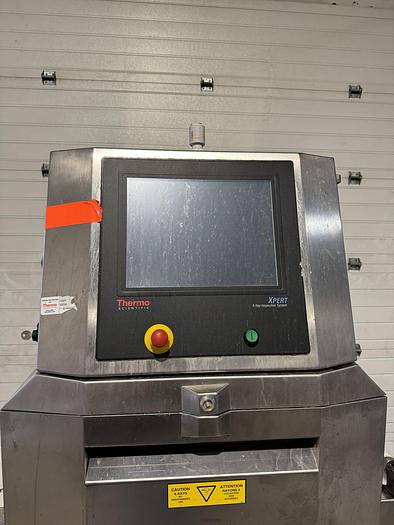

1 Used Thermofisher Scientific Inline X-Ray Inspection System.  Machine was manufactured in 2012 and was last used in a large food plant. Is used to detect metals and other foreign objects in packaged food. Detects metal, glass, dense plastics and can analyse x-ray images to estimate weight and fill of products. Ideal for small bags and large cartons. Comes with motorized belt measuring 16” wide x 55” long, high resolution and sensitivity detectors, with large washdown touchscreen. Tunnel measures 17” wide x 8” high. Machine is constructed in Stainless Steel and is completely washdown. Sits on adjustable leveling legs. Electrics: 3/60/230 volts.

Latest Information from OEM:

·        X-Ray Power 70 kV, 1.2 mA (84 W) or 80 kV, 2 mA (160W)

·        Detector Scan Rate Up to 2800 lines/second

·        Detector Resolution 0.8 mm standard, 0.4 mm optional

·        Detection Algorithms Available Binary, Contrast, Gradient, Groups, Morphology

·        Inspection Algorithms Available Weight, Count, Grid and customizations

·        Aperture Width and Height See beam coverage drawing

·        Belt Speed Range 10 m/min to 80 m/min (33 ft/min to 263 ft/min)

·        Multilane Operation Up to 8 lanes

·        Conveyor Heights Available 800 mm to 1400 mm (31.5 in to 55 in)

·        Conveyor Lengths Available 1.5 m (4.9 ft) standard, others available on request

·        Belt Material FDA approved urethane

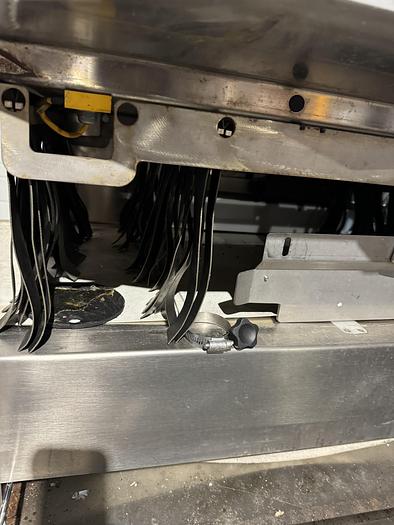

·        X-Ray Curtain Material Proprietary no-lead material

·        Safety/Security Features X-ray power key, emergency stops, radiation curtains, LED X-ray imminent/on lights, all doors

·        equipped with magnetic interlocks

·        Human Machine Interface (HMI) 15-inch diagonal touchscreen with protective cover

·        Interface Languages Available English, Spanish, Italian, French, German, Chinese; Others available on request

·        Environmental, Electrical and Operational Specifications

·        Operating Temperature +5°C to +40°C (+41°F to +104°F)

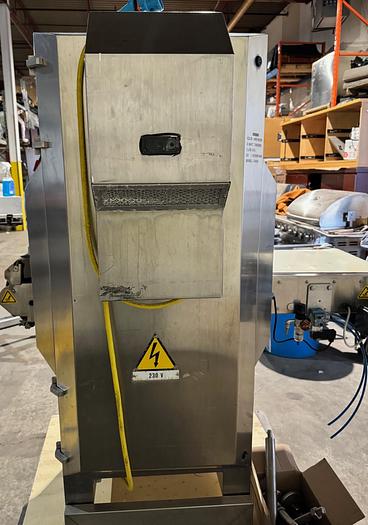

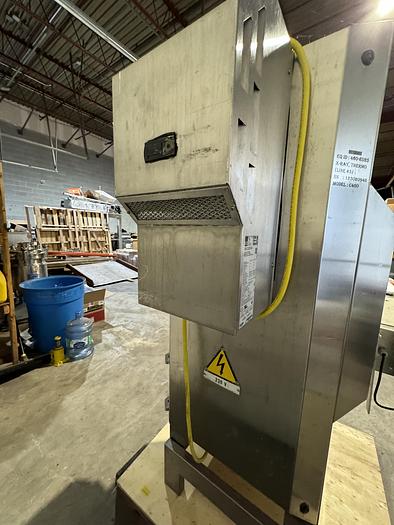

·        Machine Cooling Built-in 2083 BTU (610 W) cabinet air conditioner

·        Relative Humidity 20% to 90% non-condensing

·        Electrical Input 190 to 240 VAC, 50/60 Hz, 20-amp service

·        Digital Outputs 4 available

·        Digital Inputs 6 available

·        USB Port 2.0, watertight port on outside of machine

·        Network Port Ethernet

·        Compressed Air (for rejection devices) 80 psi to 100 psi (5.5 bar to 6.9 bar)

·        Machine Weight (standard model) 415 kg (915 lbs)

·        Conformance Tests and Certifications

·        Radiation Safety Conformance FDA CFR 21 part 1020.40, UK IRR 1999, RED act (contact factory for other regional certifications)

·        Intrusion Protection Rating IP 54 or IP65

·        Note: above details may be different from actual machine.
