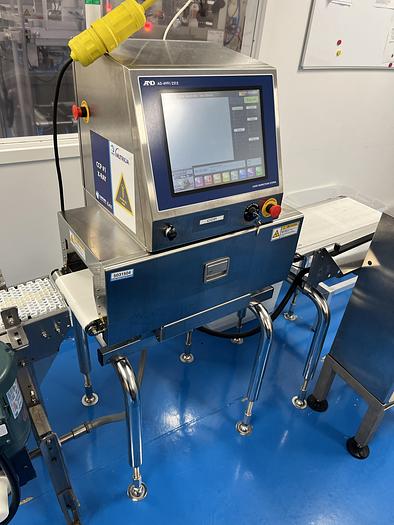

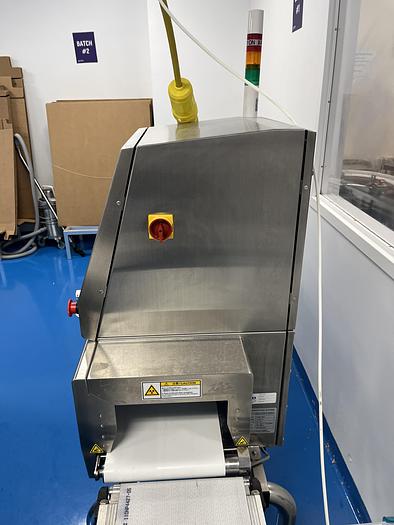

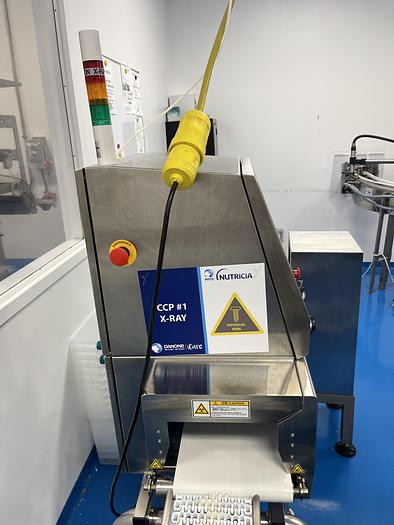

Used A&D X-ray Inspection System, Model AD-4991-2515

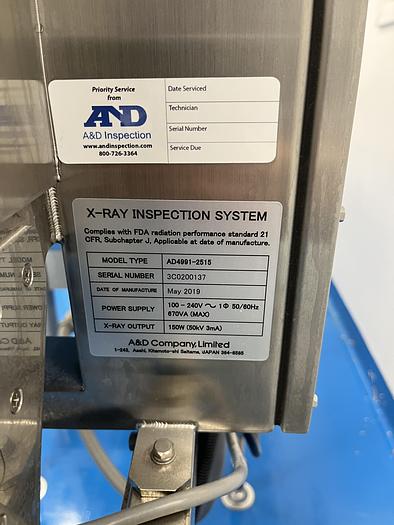

1 Used A&D X-ray Inspection System, Model AD-4991-2515. Serial #: 3C0200137. Machine was manufactured in 2019, is constructed in stainless steel, is washdown rated and was last used in a large nutraceutical facility.  From OEM: Unit takes x-ray images of items as they pass along its built-in conveyor, then analyses those images in real-time to perform containment detection and verify other product conditions such as shape, item count, position and mass estimation. X-ray output: 150W (50kv 3mA). Can program up to 1,000 settings (10 groups, 100 in each group) can be registered for each product. Images of products can be stored and displayed from USB memory. Comes with 15” color touchscreen LCD, signal tower, emergency stop, key controlled on/off and comes with a USB terminal with waterproof cap. Sits on 4 washdown stainless steel leveling legs. Electrics: 1/60/120-240 volts. Last used for powders in pouches.

Types of Contaminants Machine can detect:

·         Metal

·         Non-ferrous metals in foil,

·         including stainless steel

·         Glass

·         Bone (calcified)

·         PVC plastic

·         TFE (Teflon) plastic

·         Ceramic or concrete

·         Flavor/sugar clumps
