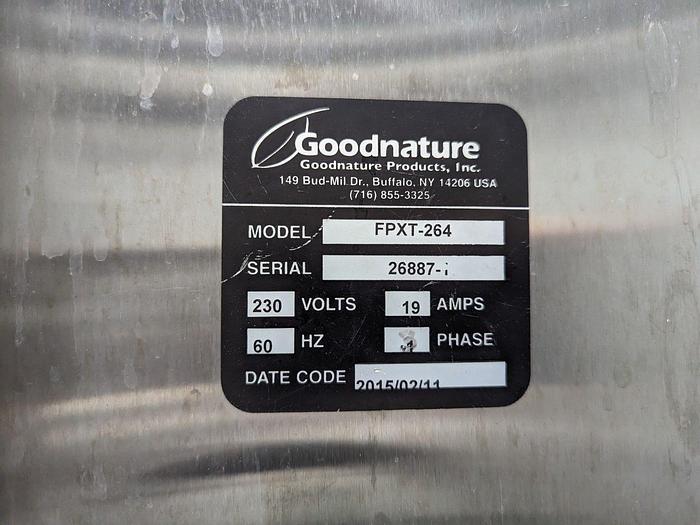

Used Good Nature HTST Flash Pasteurizer, Model FPXT-264

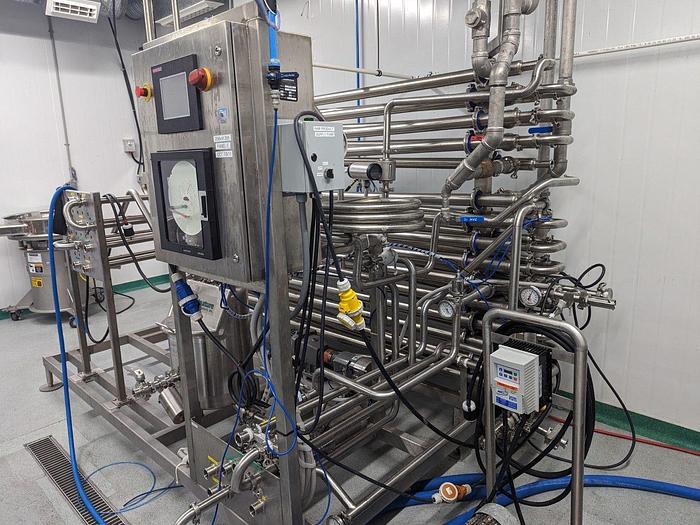

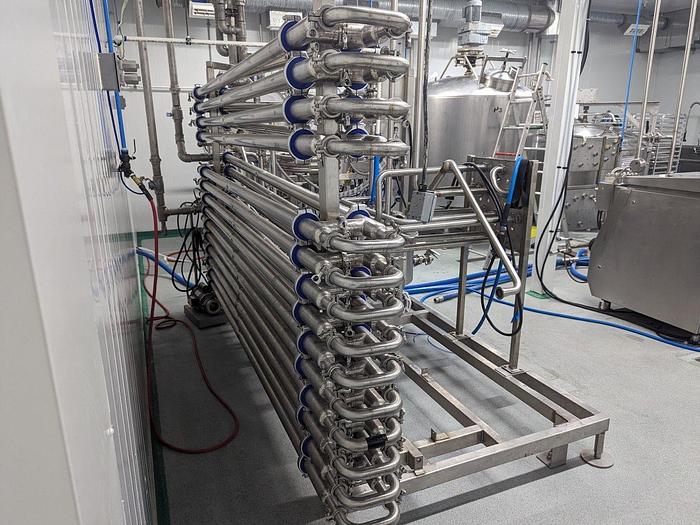

1 Used Good Nature HTST Flash Pasteurizer, Model FPXT-264. Manufactured in 2015, this unit heats and cools product in a series of stainless steel heat exchangers. Product is rapidly heated, held at temperature for a brief period and then quickly cooled.

RATED CAPACITY:

HTST:

·         264 gallons per hour

·         38°F incoming raw temperature

·         185°F pasteurization temperature

·         Maximum 10-1/2 LBS per gallon product weight

HOTFILL:

•            144 gallons per hour

•            38°F incoming raw temperature

•            185°F pasteurization temperature

•            Maximum 10-1/2 LBS per gallon product weight

HOLD TIME: 15 SECONDS

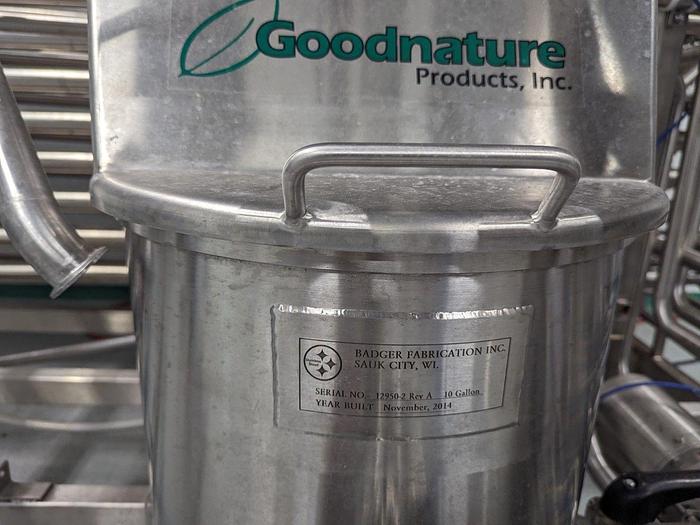

BALANCE TANK VOLUME: 10 GALLONS

SYSTEM VOLUME:     HTST SET-UP:                APPROX. 30 GALLONS

                                    HOT FILL SET-UP:        APPROX. 15 GALLONS

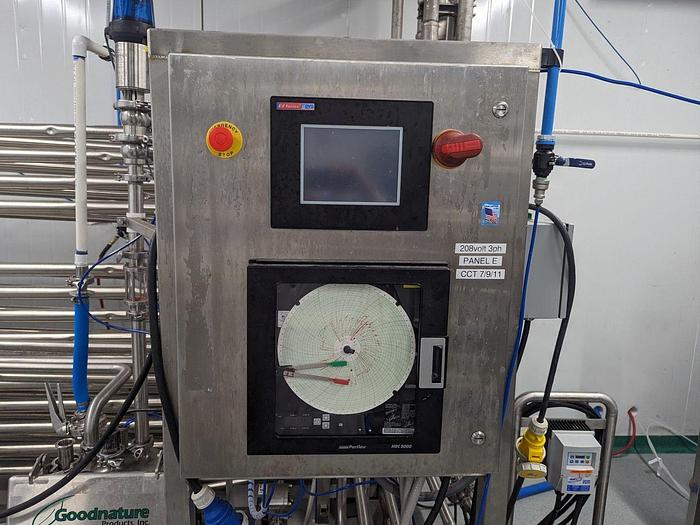

Specifications from the OEM: “Pasteurization provides 5-log kill on E. Coli 0157:H7, Cryptosporidium, Listeria, Salmonella, and may other pathogens.” Comes with fully adjustable CIP, controlled differential pressure system prevents cross contamination, Hot-Fill to produce a product that is shelf stable. Pounds per gallon: 10-1/2, HTST flow: 4.4gpm, Hot-Fill Flow: 2.2gpm. Heat exchanger type: Tubular, Heater type: Gas. Equipped with a programmable logic control, PMO balance tank, automatic divert valve, chart recorder, booster pump, flow panel, flow meter, holding loop, digital temperature controller.

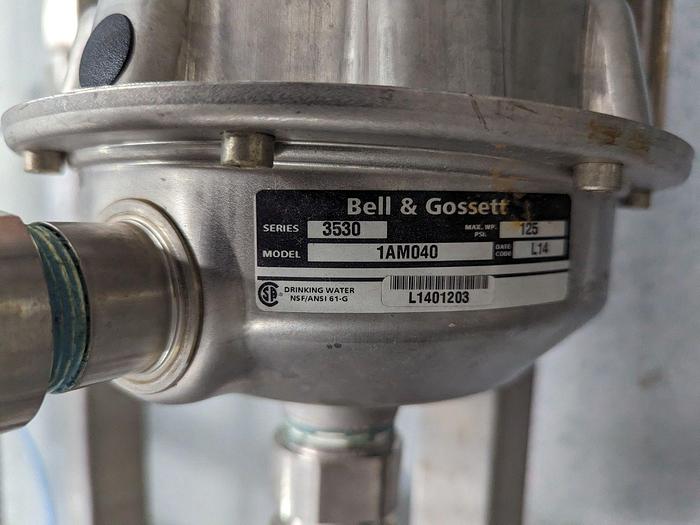

Frame and tank manufactured in 304 stainless steel. Product tubing in 304 stainless steel, polished ID/OD. Comes with a Unibloc PD400 rotary lobe pump, 5HP nord gearmotor motor with 618rpm out at 1800rpm unit, and a Topflo booster pump, model TF-c100-MD-56cs, with a 1-1/2 HP, 3600rpm.

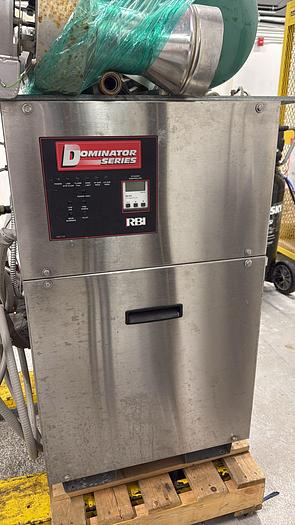

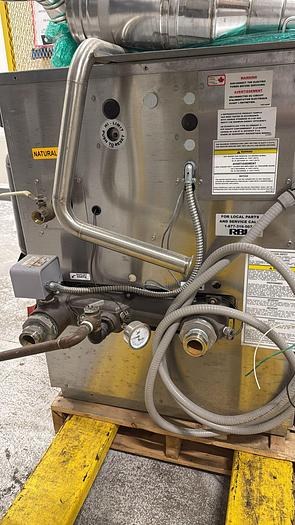

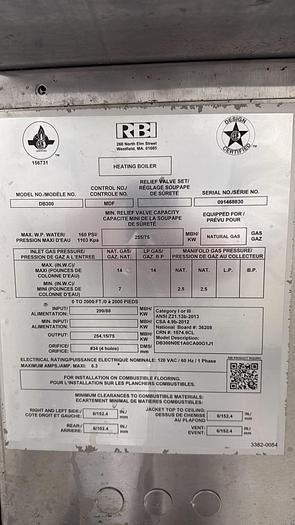

Boiler: RBI Dominator, Model DB300SS – 252 MBTU/NG. Serial #: 091468830. Maximum water pressure: 160 psi. Maximum IN.W.C. – 14 (natural gas). Minimum IN.W.C. – 7.

Unit is CRN rated, SA Certified.
